MX-6924 F5 高通QCN9024/5GHz/4x4 MIMO/PCI Express 3.0/802.11ax/WiFi6模塊
MX-6924 F5 高通QCN9024/5GHz/4x4 MIMO/PCI Express 3.0/802.11ax/WiFi6模塊
產品類別： 無線模塊系列

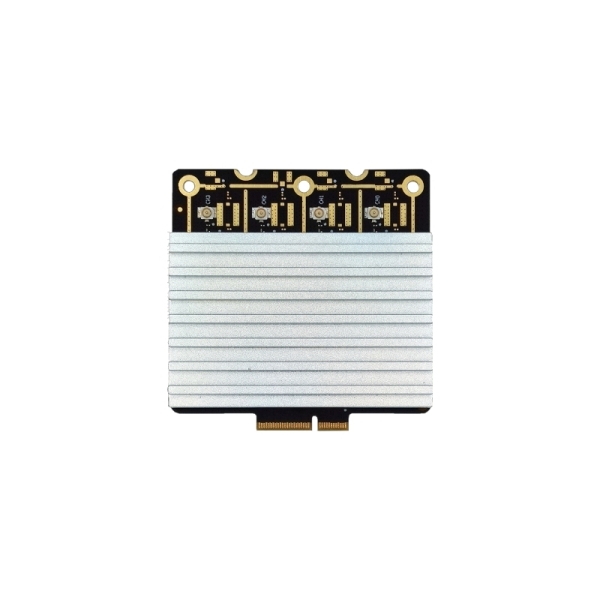

MX6924 F5是一款采用M.2 E-key接口，支持PCI Express 3.0協議的嵌入式無線網卡。采用Qualcomm? 802.11ax Wi-Fi技術，支持5180-5850GHz頻段，具備AP及STA功能，同時具備?4x4 MIMO和4個空間流。
規格書 聯系碼訊 申請樣機
產品概述
MX6924 F5是一款采用M.2 E-key接口，支持PCI Express 3.0協議的嵌入式無線網卡。采用Qualcomm? 802.11ax Wi-Fi技術，支持5180-5850GHz頻段，具備AP及STA功能，同時具備 4x4 MIMO和4個空間流，適用于5GHz IEEE802.11a/n/ac/ax應用，相比上一代無線網卡的傳輸效率更高，并具備動態頻率選擇(DFS)功能。
產品規格
|
產品類型 |
無線網卡 |
|
芯片 |
QCN9024 |
|
IEEE 標準 |
IEEE 802.11ax |
|
接口 |
PCI Express 3.0，M.2 E-key |
|
工作電壓 |
3.3V |
|
頻率范圍 |
5180~5320GHz 5745~5825GHz |
|
調制技術 |
802.11n:OFDM（BPSK,QPSK,16-QAM,64-QAM,256-QAM） 802.11ac:OFDM（BPSK,QPSK,16-QAM,64-QAM,256-QAM） 802.11ax:OFDMA （BPSK,QPSK,DBPSK,DQPSK,16-QAM,64-QAM,256-QAM,1024-QAM,4096-QAM） |
|
輸出功率（單通道） |
802.11ax：Max. 24dBm |
|
功耗 |
≦15W |
|
接收靈敏度 |
11ax： HE20 MCS0 <-95dBm / MCS11 <-62dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-56dBm HE160 MCS0 <-87dBm / MCS9 <-64dBm |
|
天線接口 |
4 x U. FL |
|
工作環境 |
溫度：-20°C to 70°C 濕度：95%（無冷凝） |
|
存儲環境 |
溫度：-40°C to 90°C 濕度：90%（無冷凝） |
|
認證 |
RoHS/REACH |
|
重量 |
18克 |
|
尺寸（W*H*D) |
55.9 x 52.8x 8.5 mm （偏差±0.1mm） |
射頻參數
| 速率 | 發射功率（單通道） | 公差 | 接收靈敏度 | 公差 | |
| 802.11a | 6Mbps | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 24dBm | ±2dB | -93dBm | ±2dB | |
| 12Mbps | 24dBm | ±2dB | -90dBm | ±2dB | |
| 18Mbps | 24dBm | ±2dB | -88dBm | ±2dB | |
| 24Mbps | 23dBm | ±2dB | -85dBm | ±2dB | |
| 36Mbps | 22dBm | ±2dB | -83dBm | ±2dB | |
| 48Mbps | 21dBm | ±2dB | -80dBm | ±2dB | |
| 54Mbps | 20dBm | ±2dB | -78dBm | ±2dB | |
| 802.11n/ac VHT20 | MCS0 | 23dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -89dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -83dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -80dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -77dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -75dBm | ±2dB | |
| MCS9 | 17dBm | ±2dB | -72dBm | ±2dB | |
| 802.11n/ac VHT40 | MCS0 | 23dBm | ±2dB | -92dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -82dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -79dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -76dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -73dBm | ±2dB | |
| MCS8 | 19dBm | ±2dB | -70dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -67dBm | ±2dB | |
| 802.11ac VHT80 | MCS0 | 23dBm | ±2dB | -87dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -75dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -73dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -70dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -67dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -64dBm | ±2dB | |
| 802.11ac VHT160 | MCS0 | 23dBm | ±2dB | -87dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS5 | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -73dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -70dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -67dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -64dBm | ±2dB | |
| 802.11ax HE20 | MCS0 | 23dBm | ±2dB | -95dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -93dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -80dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -77dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -74dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -71dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -68dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -65dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -62dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -58dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -55dBm | ±2dB | |
| 802.11ax HE40 | MCS0 | 23dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -78dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -72dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -69dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -66dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -63dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -60dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -55dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -52dBm | ±2dB | |
| 802.11ax HE80 | MCS0 | 23dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -84dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -79dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -76dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -74dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -71dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -68dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -65dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -62dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -59dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -56dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -52dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -50dBm | ±2dB | |
| 802.11ax HE160 | MCS0 | 23dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -84dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -79dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -76dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -74dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -71dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -68dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -65dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -62dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -59dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -56dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -52dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -50dBm | ±2dB |

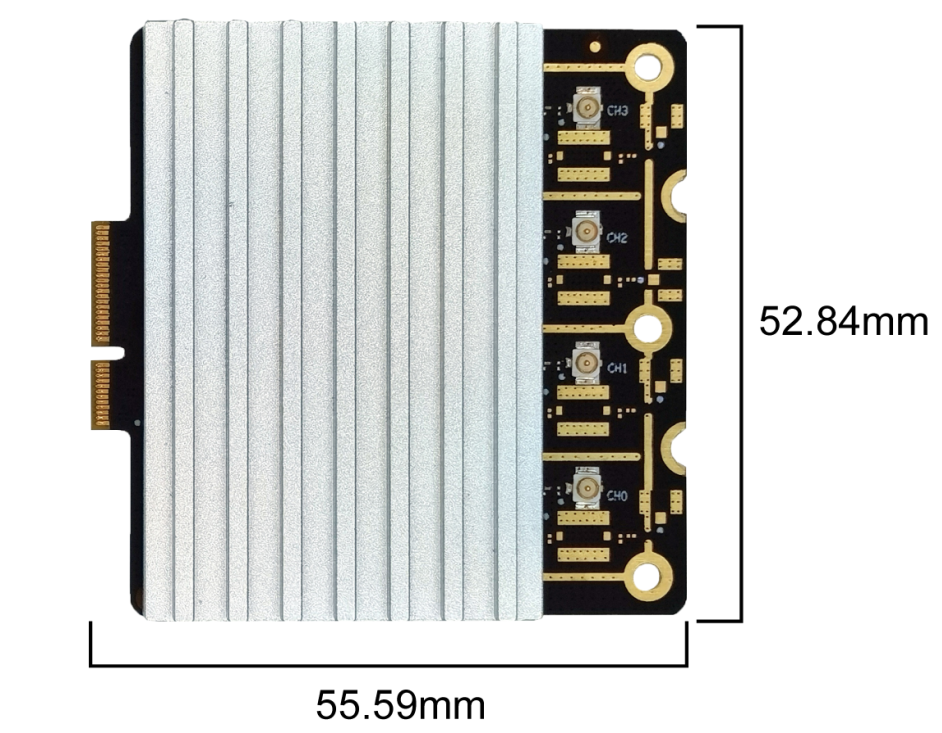

模組尺寸
