產品概述
碼訊ME6922 FD 是一款配有 Mini PCIe 接口的嵌入式WiFi6無線模塊。該無線模塊采用 Qualcomm QCN9024 芯片，符合 802.11ax Wi-Fi 6 標準，支持 AP 及 STA 功能，同時具備 2x2 MIMO 和 2 個空間流，2.4G 最高速率 574Mbps，5G 最高速率 2400Mbps，相比上一代無線網卡的傳輸效率更高，并具備動態頻率選擇(DFS)功能。
產品規格
| 產品類型 | 無線網卡 |
| 芯片 | QCN9024 |
| IEEE 標準 | IEEE 802.11ax |
| 接口 | PCI Express 3.0，MINI PCIe |
| 工作電壓 | 3.3V |
| 頻率范圍 | 5180~5320GHz 5745~5825GHz，2.4GHz: 2.412~2.472GH |
| 調制技術 | OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024- QAM |
| 輸出功率（單通道） | 5G 802.11a/an/ac/ax：Max. 20dBm， 2.4GHz 802.11b/g/n/ax Max 21dBm |
| 功耗 | ≦7W |
| 頻寬 | 2.4G： 20/40MHz ；5G：20/40/80/160MHz |
| 接收靈敏度 | 11ax： HE20 MCS0 <-95dBm / MCS11 <-62dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-56dBm HE160 MCS0 <-87dBm / MCS9 <-64dBm |
| 天線接口 | 2 x U. FL |
| 工作環境 | 溫度：-20°C to 70°C 濕度：95%（無冷凝） |
| 存儲環境 | 溫度：-40°C to 90°C 濕度：90%（無冷凝） |
| 認證 | RoHS/REACH |
| 重量 | 9克 |
| 尺寸（W*H*D) | 50.9mm×30.0mm×3.2mmmm （偏差±0.1mm） |
產品概述
碼訊ME6624 F5是一款具有MiNi PCIe硬件接口， PCIe 3.0的嵌入式WiFi6無線網卡。該無線網卡采用802.11ax Wi-Fi 6技術，支持5180-5850GHz（中國）頻段，可執行AP及STA功能，同時具備4x4 MIMO和4個空間流，適用于5GHz IEEE802.11a/n/ac/ax應用，相比上一代無線網卡的傳輸效率更高，最高速率可達4800Mbps ，并具備動態頻率選擇(DFS)功能。
支持 X86*1 平臺及第三方ARM平臺。
產品規格
| 產品類型 | WiFi6無線模塊 |
| 芯片 | QCN6024/9024/9074 |
| IEEE 標準 | IEEE 802.11ax |
| 接口 | PCI Express 3.0，MINI PCIe |
| 工作電壓 | 3.3V |
| 頻率范圍 | 5G：5.180GHz~5.850GHz |
| 調制技術 | 802.11n：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ac：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ax：OFDMA （BPSK，QPSK，DBPSK，DQPSK，16-QAM，64-QAM， 256-QAM，1024-QAM，4096-QAM） |
| 輸出功率（單通道） | 802.11ax：Max. 20dBm |
| 功耗 | ≦9W |
| 接收靈敏度 | 11ax： HE20 MCS0 <-89dBm / MCS11 <-64dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-58dBm |
| 天線接口 | 4 x U. FL |
| 工作環境 | 溫度：-20°C to 70°C 濕度：95% （無冷凝） |
| 存儲環境 | 溫度：-40°C to 90°C 濕度：90% （無冷凝） |
| 認證 | RoHS/REACH |
| 重量 | 18克 |
| 尺寸（W*H*D) | 50.9mm×30.0mm×3.2mm （偏差±0.1mm） |
*1 目前碼訊已經適配X86平臺下的ubuntu多版本系統。
產品概述
碼訊MX6974 F5是一款配有PCI Express 3.0接口及M.2 E-key的嵌入式WiFi6無線網卡。該無線網卡采用Qualcomm? 802.11ax Wi-Fi 6技術，支持5180-5850GHz頻段，可執行AP及STA功能，同時具備4x4 MIMO和4個空間流，適用于5GHz IEEE802.11a/n/ac/ax應用，相比上一代無線網卡的傳輸效率更高，并具備動態頻率選擇(DFS)功能。
產品規格
| 產品類型 | WiFi6無線模塊 |
| 芯片 | QCN9074 |
| IEEE 標準 | IEEE 802.11ax |
| 接口 | PCI Express 3.0，M.2 E-key |
| 工作電壓 | 3.3V/5V |
| 頻率范圍 | 5G：5.180GHz~5.850GHz |
| 調制技術 | 802.11n：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ac：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ax：OFDMA （BPSK，QPSK，DBPSK，DQPSK，16-QAM，64-QAM， 256-QAM，1024-QAM，4096-QAM） |
| 輸出功率（單通道） | 802.11ax：Max. 21dBm |
| 功耗 | ≦15W |
| 接收靈敏度 | 11ax： HE20 MCS0 <-89dBm / MCS11 <-64dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-58dBm |
| 天線接口 | 4 x U. FL |
| 工作環境 | 溫度：-20°C to 70°C 濕度：95% （無冷凝） |
| 存儲環境 | 溫度：-40°C to 90°C 濕度：90% （無冷凝） |
| 認證 | RoHS/REACH |
| 重量 | 20 克 |
| 尺寸（W*H*D) | 60 x 57 x 4.2 mm （偏差±0.1mm） |
射頻參數
| 速率 | 發射功率（單通道） | 公差 | 接收靈敏度 | 公差 | |
| 802.11a | 6Mbps | 21dBm | ±2dB | -91dBm | ±2dB |
| 9Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 12Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 18Mbps | 21dBm | ±2dB | --- | ±2dB | |
| 24Mbps | 20dBm | ±2dB | --- | ±2dB | |
| 36Mbps | 20dBm | ±2dB | --- | ±2dB | |
| 48Mbps | 17dBm | ±2dB | --- | ±2dB | |
| 54Mbps | 17dBm | ±2dB | -74dBm | ±2dB | |
| 802.11n/ac VHT20 | MCS0 | 21dBm | ±2dB | -91dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | -74dBm | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -67dBm | ±2dB | |
| 802.11n/ac VHT40 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | -71dBm | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -65dBm | ±2dB | |
| 802.11ac VHT80 | MCS0 | 21dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | -61dBm | ±2dB | |
| 802.11ac VHT160 | MCS0 | 19dBm | ±2dB | --- | ±2dB |
| MCS1 | 19dBm | ±2dB | --- | ±2dB | |
| MCS2 | 19dBm | ±2dB | --- | ±2dB | |
| MCS3 | 19dBm | ±2dB | --- | ±2dB | |
| MCS4 | 18dBm | ±2dB | --- | ±2dB | |
| MCS5 | 18dBm | ±2dB | --- | ±2dB | |
| MCS6 | 15dBm | ±2dB | --- | ±2dB | |
| MCS7 | 15dBm | ±2dB | --- | ±2dB | |
| MCS8 | 15dBm | ±2dB | --- | ±2dB | |
| MCS9 | 15dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE20 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -64dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE40 | MCS0 | 21dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -60dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE80 | MCS0 | 21dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | ±2dB | --- | ±2dB | |
| MCS2 | 21dBm | ±2dB | --- | ±2dB | |
| MCS3 | 21dBm | ±2dB | --- | ±2dB | |
| MCS4 | 20dBm | ±2dB | --- | ±2dB | |
| MCS5 | 20dBm | ±2dB | --- | ±2dB | |
| MCS6 | 17dBm | ±2dB | --- | ±2dB | |
| MCS7 | 17dBm | ±2dB | --- | ±2dB | |
| MCS8 | 17dBm | ±2dB | --- | ±2dB | |
| MCS9 | 17dBm | ±2dB | --- | ±2dB | |
| MCS10 | 16dBm | ±2dB | --- | ±2dB | |
| MCS11 | 16dBm | ±2dB | -58dBm | ±2dB | |
| MCS12 | 10dBm | ±2dB | --- | ±2dB | |
| MCS13 | 10dBm | ±2dB | --- | ±2dB | |
| 802.11ax HE160 | MCS0 | 19dBm | ±2dB | --- | ±2dB |
| MCS1 | 19dBm | ±2dB | --- | ±2dB | |
| MCS2 | 19dBm | ±2dB | --- | ±2dB | |
| MCS3 | 19dBm | ±2dB | --- | ±2dB | |
| MCS4 | 18dBm | ±2dB | --- | ±2dB | |
| MCS5 | 18dBm | ±2dB | --- | ±2dB | |
| MCS6 | 15dBm | ±2dB | --- | ±2dB | |
| MCS7 | 15dBm | ±2dB | --- | ±2dB | |
| MCS8 | 15dBm | ±2dB | --- | ±2dB | |
| MCS9 | 15dBm | ±2dB | --- | ±2dB | |
| MCS10 | 14dBm | ±2dB | --- | ±2dB | |
| MCS11 | 14dBm | ±2dB | --- | ±2dB | |
| MCS12 | 7dBm | ±2dB | --- | ±2dB | |
| MCS13 | 7dBm | ±2dB | --- | ±2dB |
模組尺寸和推薦PCB方式
產品概述
MX6924 F5是一款采用M.2 E-key接口，支持PCI Express 3.0協議的嵌入式無線網卡。采用Qualcomm? 802.11ax Wi-Fi技術，支持5180-5850GHz頻段，具備AP及STA功能，同時具備 4x4 MIMO和4個空間流，適用于5GHz IEEE802.11a/n/ac/ax應用，相比上一代無線網卡的傳輸效率更高，并具備動態頻率選擇(DFS)功能。
產品規格
| 產品類型 | 無線網卡 |
| 芯片 | QCN9024 |
| IEEE 標準 | IEEE 802.11ax |
| 接口 | PCI Express 3.0，M.2 E-key |
| 工作電壓 | 3.3V |
| 頻率范圍 | 5180~5320GHz 5745~5825GHz |
| 調制技術 | 802.11n:OFDM（BPSK,QPSK,16-QAM,64-QAM,256-QAM） 802.11ac:OFDM（BPSK,QPSK,16-QAM,64-QAM,256-QAM） 802.11ax:OFDMA （BPSK,QPSK,DBPSK,DQPSK,16-QAM,64-QAM,256-QAM,1024-QAM,4096-QAM） |
| 輸出功率（單通道） | 802.11ax：Max. 24dBm |
| 功耗 | ≦15W |
| 接收靈敏度 | 11ax： HE20 MCS0 <-95dBm / MCS11 <-62dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-56dBm HE160 MCS0 <-87dBm / MCS9 <-64dBm |
| 天線接口 | 4 x U. FL |
| 工作環境 | 溫度：-20°C to 70°C 濕度：95%（無冷凝） |
| 存儲環境 | 溫度：-40°C to 90°C 濕度：90%（無冷凝） |
| 認證 | RoHS/REACH |
| 重量 | 18克 |

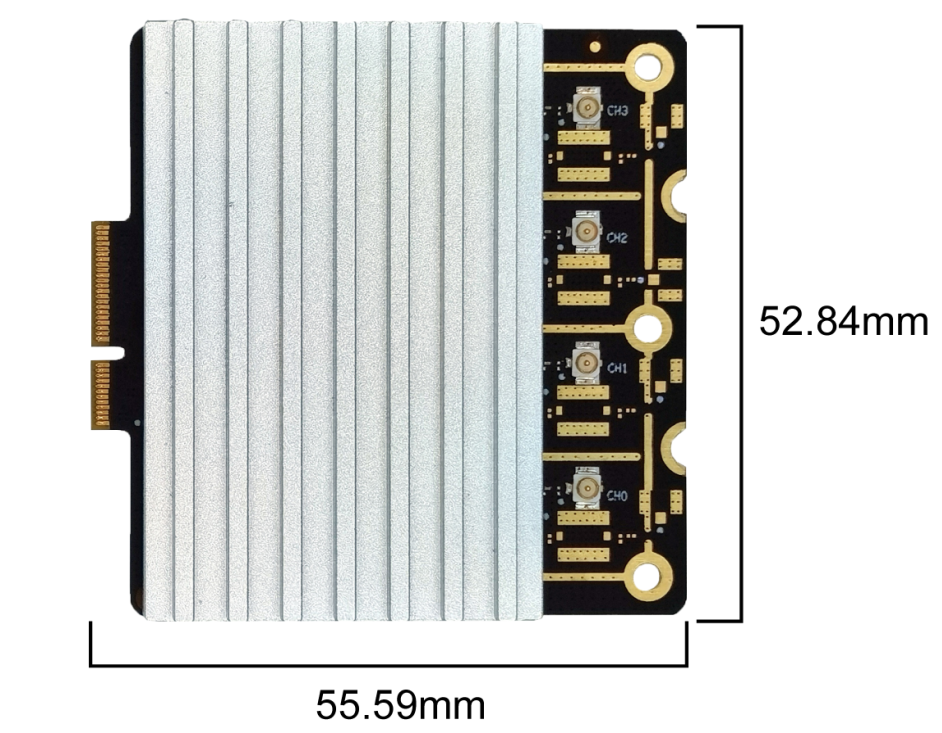

| 尺寸（W*H*D) | 55.9 x 52.8x 8.5 mm （偏差±0.1mm） |
射頻參數
| 速率 | 發射功率（單通道） | 公差 | 接收靈敏度 | 公差 | |
| 802.11a | 6Mbps | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 24dBm | ±2dB | -93dBm | ±2dB | |
| 12Mbps | 24dBm | ±2dB | -90dBm | ±2dB | |
| 18Mbps | 24dBm | ±2dB | -88dBm | ±2dB | |
| 24Mbps | 23dBm | ±2dB | -85dBm | ±2dB | |
| 36Mbps | 22dBm | ±2dB | -83dBm | ±2dB | |
| 48Mbps | 21dBm | ±2dB | -80dBm | ±2dB | |
| 54Mbps | 20dBm | ±2dB | -78dBm | ±2dB | |
| 802.11n/ac VHT20 | MCS0 | 23dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -89dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -83dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -80dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -77dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -75dBm | ±2dB | |
| MCS9 | 17dBm | ±2dB | -72dBm | ±2dB | |
| 802.11n/ac VHT40 | MCS0 | 23dBm | ±2dB | -92dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -82dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -79dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -76dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -73dBm | ±2dB | |
| MCS8 | 19dBm | ±2dB | -70dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -67dBm | ±2dB | |
| 802.11ac VHT80 | MCS0 | 23dBm | ±2dB | -87dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -75dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -73dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -70dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -67dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -64dBm | ±2dB | |
| 802.11ac VHT160 | MCS0 | 23dBm | ±2dB | -87dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS5 | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -73dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -70dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -67dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -64dBm | ±2dB | |
| 802.11ax HE20 | MCS0 | 23dBm | ±2dB | -95dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -93dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -80dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -77dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -74dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -71dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -68dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -65dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -62dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -58dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -55dBm | ±2dB | |
| 802.11ax HE40 | MCS0 | 23dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -87dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -85dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -78dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -72dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -69dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -66dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -63dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -60dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -55dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -52dBm | ±2dB | |
| 802.11ax HE80 | MCS0 | 23dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -84dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -79dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -76dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -74dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -71dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -68dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -65dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -62dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -59dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -56dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -52dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -50dBm | ±2dB | |
| 802.11ax HE160 | MCS0 | 23dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 23dBm | ±2dB | -84dBm | ±2dB | |
| MCS2 | 23dBm | ±2dB | -81dBm | ±2dB | |
| MCS3 | 23dBm | ±2dB | -79dBm | ±2dB | |
| MCS4 | 23dBm | ±2dB | -76dBm | ±2dB | |
| MCS5 | 22dBm | ±2dB | -74dBm | ±2dB | |
| MCS6 | 21dBm | ±2dB | -71dBm | ±2dB | |
| MCS7 | 20dBm | ±2dB | -68dBm | ±2dB | |
| MCS8 | 18dBm | ±2dB | -65dBm | ±2dB | |
| MCS9 | 18dBm | ±2dB | -62dBm | ±2dB | |
| MCS10 | 16dBm | ±2dB | -59dBm | ±2dB | |
| MCS11 | 16dBm | ±2dB | -56dBm | ±2dB | |
| MCS12 | 15dBm | ±2dB | -52dBm | ±2dB | |
| MCS13 | 15dBm | ±2dB | -50dBm | ±2dB |
模組尺寸
產品概述
碼訊MX520VX無線WIFI網卡，采用高通Qualcomm QCA9880/QCA9882芯片，雙頻無線接入設計，主機接口為Mini PCIExpress 1.1，2x2 MIMO技術，速率高達867Mbps。兼容IEEE 802.11ac并向后兼容802.11a/b/g/n/ac。
產品特征
-
專為雙頻無線接入點設計
-
Qualcomm Atheros:QCA9880
-
最大輸出功率：2.4GHz：21dBm&5GHz：20dBm（單通道）
-
兼容IEEE 802.11ac并向后兼容802.11a/b/g/n/ac
-
2x2 MIMO技術，速率高達867Mbps
-
Mini PCI Express 接口
-
支持空間復用、循環延遲分集（CDD）、低密度奇偶校驗（LDPC）碼、最大比率合并（MRC）、空時分組碼（STBC）
-
支持IEEE 802.11d、e、h、i、k、r、v時間戳和w標準
-
支持動態頻率選擇（DFS）
-
卡片經過單獨校準，以保證質量
產品規格
| 芯片 | QCA9880 |
| 參考設計 | XB140-020 |
| 主機接口 | Mini PCI Express 1.1 標準 |
| 工作電壓 | 3.3V DC |
| 天線連接器 | 2xU. FL |
| 頻率范圍 | 2.4GHz:2.412GHz～2.472GHz，或5GHz:5.150GHz～5.825GHz，可選雙頻段 |
| 認證 | FCC和CE認證、REACH和RoHS合規性 |
| 最大功耗 | 3.5W |
| 支持的操作系統 | 高通Atheros參考無線驅動程序或帶ath10k無線驅動程序的OpenWRT/LEDE |
| 調制技術 | OFDM：BPSK,QPSK,DBPSK, DQPSK,16-QAM,64-QAM,256-QAM |
| 環境溫度 | 工作溫度： -20°C～70°C，存儲溫度：-40°C ～ 90°C |
| 環境濕度（非冷凝） | 工作溫度： 5%～95%，存儲溫度：最大90% |
| ESD 靈敏度 | 1C類 |
| 尺寸（長×寬×厚） | 50.9mm×30.0mm×3.2mm |
射頻參數
| 速率 | 發射功率 （單通道） | 公差 | 接收靈敏度 | 公差 | |
| 2.4GHz 802.11b | 1Mbps | 21dBm | ±1.5dB | -95dBm | ±1.5dB |
| 2Mbps | 21dBm | ±1.5dB | -94dBm | ±1.5dB | |
| 5.5Mbps | 21dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 11Mbps | 20dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 2.4GHz 802.11g | 6Mbps | 21dBm | ±1.5dB | -94dBm | ±1.5dB |
| 9Mbps | 21dBm | ±1.5dB | -93dBm | ±1.5dB | |
| 12Mbps | 21dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 18Mbps | 21dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 24Mbps | 21dBm | ±1.5dB | -88dBm | ±1.5dB | |
| 36Mbps | 20dBm | ±1.5dB | -85dBm | ±1.5dB | |
| 48Mbps | 19dBm | ±1.5dB | -81dBm | ±1.5dB | |
| 54Mbps | 18dBm | ±1.5dB | -75dBm | ±1.5dB | |
| 2.4GHz 802.11n HT20 | MCS 0 | 21dBm | ±1.5dB | -93dBm | ±1.5dB |
| MCS 1 | 21dBm | ±1.5dB | -91dBm | ±1.5dB | |
| MCS 2 | 21dBm | ±1.5dB | -89dBm | ±1.5dB | |
| MCS 3 | 20dBm | ±1.5dB | -84dBm | ±1.5dB | |
| MCS 4 | 20dBm | ±1.5dB | -83dBm | ±1.5dB | |
| MCS 5 | 20dBm | ±1.5dB | -78dBm | ±1.5dB | |
| MCS 6 | 18dBm | ±1.5dB | -78dBm | ±1.5dB | |
| MCS 7 | 16dBm | ±1.5dB | -73dBm | ±1.5dB | |
| 2.4GHz 802.11n HT40 | MCS 0 | 20dBm | ±1.5dB | -92dBm | ±1.5dB |
| MCS 1 | 20dBm | ±1.5dB | -88dBm | ±1.5dB | |
| MCS 2 | 20dBm | ±1.5dB | -85dBm | ±1.5dB | |
| MCS 3 | 19dBm | ±1.5dB | -82dBm | ±1.5dB | |
| MCS 4 | 19dBm | ±1.5dB | -79dBm | ±1.5dB | |
| MCS 5 | 19dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 6 | 18dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 7 | 16dBm | ±1.5dB | -71dBm | ±1.5dB |
| 速率 | 發射功率 （單通道） | 公差 | 接收靈敏度 | 公差 | |
| 5GHz 802.11a | 6Mbps | 20dBm | ±1.5dB | -94dBm | ±1.5dB |
| 9Mbps | 20dBm | ±1.5dB | -94dBm | ±1.5dB | |
| 12Mbps | 20dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 18Mbps | 20dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 24Mbps | 20dBm | ±1.5dB | -86dBm | ±1.5dB | |
| 36Mbps | 18dBm | ±1.5dB | -84dBm | ±1.5dB | |
| 48Mbps | 16dBm | ±1.5dB | -81dBm | ±1.5dB | |
| 54Mbps | 15dBm | ±1.5dB | -77dBm | ±1.5dB | |
| 5GHz 802.11n/ac VHT20 | MCS 0 | 19dBm | ±1.5dB | -93dBm | ±1.5dB |
| MCS 1 | 19dBm | ±1.5dB | -90dBm | ±1.5dB | |
| MCS 2 | 19dBm | ±1.5dB | -87dBm | ±1.5dB | |
| MCS 3 | 18dBm | ±1.5dB | -83dBm | ±1.5dB | |
| MCS 4 | 18dBm | ±1.5dB | -80dBm | ±1.5dB | |
| MCS 5 | 17dBm | ±1.5dB | -77dBm | ±1.5dB | |
| MCS 6 | 16dBm | ±1.5dB | -74dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -70dBm | ±1.5dB | |
| 5GHz 802.11n/ac VHT40 | MCS 0 | 18dBm | ±1.5dB | -90dBm | ±1.5dB |
| MCS 1 | 18dBm | ±1.5dB | -88dBm | ±1.5dB | |
| MCS 2 | 18dBm | ±1.5dB | -85dBm | ±1.5dB | |
| MCS 3 | 17dBm | ±1.5dB | -82dBm | ±1.5dB | |
| MCS 4 | 17dBm | ±1.5dB | -79dBm | ±1.5dB | |
| MCS 5 | 16dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 6 | 15dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -69dBm | ±1.5dB | |
| MCS 9 | 13dBm | ±1.5dB | -66dBm | ±1.5dB | |
| 5GHz 802.11ac VHT80 | MCS 0 | 18dBm | ±1.5dB | -88dBm | ±1.5dB |
| MCS 1 | 18dBm | ±1.5dB | -86dBm | ±1.5dB | |
| MCS 2 | 18dBm | ±1.5dB | -84dBm | ±1.5dB | |
| MCS 3 | 17dBm | ±1.5dB | -81dBm | ±1.5dB | |
| MCS 4 | 17dBm | ±1.5dB | -77dBm | ±1.5dB | |
| MCS 5 | 16dBm | ±1.5dB | -74dBm | ±1.5dB | |
| MCS 6 | 15dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -70dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -67dBm | ±1.5dB | |
| MCS 9 | 13dBm | ±1.5dB | -62dBm | ±1.5dB |
連接器接口
產品尺寸
品尺寸.png)
產品概述
碼訊MX530VX無線WIFI網卡，采用高通Qualcomm QCA9880芯片，雙頻無線接入設計，主機接口為Mini PCIExpress 1.1，3x3 MIMO技術，速率高達1300Mbps。支持高通Atheros參考無線驅動程序或帶ath10k無線驅動程序的OpenWRT/LEDE。
產品特征
-
專為雙頻無線接入點設計
-
Qualcomm Atheros:QCA9880
-
最大輸出功率：2.4GHz：21dBm&5GHz：20dBm（單通道）
-
兼容IEEE 802.11ac并向后兼容802.11a/b/g/n/ac
-
3x3 MIMO技術，速率高達1300Mbps
-
MiniPCIExpress 接口
-
支持空間復用、循環延遲分集（CDD）、低密度奇偶校驗（LDPC）碼、最大比率合并（MRC）、空時分組碼（STBC）
-
支持IEEE 802.11d、e、h、i、k、r、v時間戳和w標準
-
支持動態頻率選擇（DFS）
-
卡片經過單獨校準，以保證質量
產品規格
| 芯片 | QCA9880 |
| 參考設計 | XB140-020 |
| 主機接口 | Mini PCI Express 1.1標準 |
| 工作電壓 | 3.3V DC |
| 天線連接器 | 3xU. FL |
| 頻率范圍 | 2.4GHz:2.412GHz～2.472GHz，或5GHz:5.150GHz～5.825GHz，可選雙頻段 |
| 認證 | FCC和CE認證、REACH和RoHS合規性 |
| 最大功耗 | 5W |
| 支持的操作系統 | 高通Atheros參考無線驅動程序或帶ath10k無線驅動程序的OpenWRT/LEDE |
| 調制技術 | OFDM：BPSK，QPSK，DBPSK， DQPSK,，16-QAM，64-QAM，256-QAM |
| 環境溫度 | 工作溫度： -20°C～70°C，存儲溫度：-40°C ～ 90°C |
| 環境濕度（非冷凝） | 工作溫度： 5%～95%，存儲溫度：最大90% |
| ESD 靈敏度 | 1C類 |
| 尺寸（長×寬×厚） | 50.9mm × 30.0mm × 3.2mm |
射頻參數
| 速率 | 發射功率 （單通道） | 公差 | 接收靈敏度 | 公差 | |
| 2.4GHz 802.11b | 1Mbps | 21dBm | ±1.5dB | -95dBm | ±1.5dB |
| 2Mbps | 21dBm | ±1.5dB | -94dBm | ±1.5dB | |
| 5.5Mbps | 21dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 11Mbps | 20dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 2.4GHz 802.11g | 6Mbps | 21dBm | ±1.5dB | -94dBm | ±1.5dB |
| 9Mbps | 21dBm | ±1.5dB | -93dBm | ±1.5dB | |
| 12Mbps | 21dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 18Mbps | 21dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 24Mbps | 21dBm | ±1.5dB | -88dBm | ±1.5dB | |
| 36Mbps | 20dBm | ±1.5dB | -85dBm | ±1.5dB | |
| 48Mbps | 19dBm | ±1.5dB | -81dBm | ±1.5dB | |
| 54Mbps | 18dBm | ±1.5dB | -75dBm | ±1.5dB | |
| 2.4GHz 802.11n HT20 | MCS 0 | 21dBm | ±1.5dB | -93dBm | ±1.5dB |
| MCS 1 | 21dBm | ±1.5dB | -91dBm | ±1.5dB | |
| MCS 2 | 21dBm | ±1.5dB | -89dBm | ±1.5dB | |
| MCS 3 | 20dBm | ±1.5dB | -84dBm | ±1.5dB | |
| MCS 4 | 20dBm | ±1.5dB | -83dBm | ±1.5dB | |
| MCS 5 | 20dBm | ±1.5dB | -78dBm | ±1.5dB | |
| MCS 6 | 18dBm | ±1.5dB | -78dBm | ±1.5dB | |
| MCS 7 | 16dBm | ±1.5dB | -73dBm | ±1.5dB | |
| 2.4GHz 802.11n HT40 | MCS 0 | 20dBm | ±1.5dB | -92dBm | ±1.5dB |
| MCS 1 | 20dBm | ±1.5dB | -88dBm | ±1.5dB | |
| MCS 2 | 20dBm | ±1.5dB | -85dBm | ±1.5dB | |
| MCS 3 | 19dBm | ±1.5dB | -82dBm | ±1.5dB | |
| MCS 4 | 19dBm | ±1.5dB | -79dBm | ±1.5dB | |
| MCS 5 | 19dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 6 | 18dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 7 | 16dBm | ±1.5dB | -71dBm | ±1.5dB
|
| 速率 | 發射功率 （單通道） | 公差 | 接收靈敏度 | 公差 | |
| 5GHz 802.11a | 6Mbps | 20dBm | ±1.5dB | -94dBm | ±1.5dB |
| 9Mbps | 20dBm | ±1.5dB | -94dBm | ±1.5dB | |
| 12Mbps | 20dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 18Mbps | 20dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 24Mbps | 20dBm | ±1.5dB | -86dBm | ±1.5dB | |
| 36Mbps | 18dBm | ±1.5dB | -84dBm | ±1.5dB | |
| 48Mbps | 16dBm | ±1.5dB | -81dBm | ±1.5dB | |
| 54Mbps | 15dBm | ±1.5dB | -77dBm | ±1.5dB | |
| 5GHz 802.11n/ac VHT20 | MCS 0 | 19dBm | ±1.5dB | -93dBm | ±1.5dB |
| MCS 1 | 19dBm | ±1.5dB | -90dBm | ±1.5dB | |
| MCS 2 | 19dBm | ±1.5dB | -87dBm | ±1.5dB | |
| MCS 3 | 18dBm | ±1.5dB | -83dBm | ±1.5dB | |
| MCS 4 | 18dBm | ±1.5dB | -80dBm | ±1.5dB | |
| MCS 5 | 17dBm | ±1.5dB | -77dBm | ±1.5dB | |
| MCS 6 | 16dBm | ±1.5dB | -74dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -70dBm | ±1.5dB | |
| 5GHz 802.11n/ac VHT40 | MCS 0 | 18dBm | ±1.5dB | -90dBm | ±1.5dB |
| MCS 1 | 18dBm | ±1.5dB | -88dBm | ±1.5dB | |
| MCS 2 | 18dBm | ±1.5dB | -85dBm | ±1.5dB | |
| MCS 3 | 17dBm | ±1.5dB | -82dBm | ±1.5dB | |
| MCS 4 | 17dBm | ±1.5dB | -79dBm | ±1.5dB | |
| MCS 5 | 16dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 6 | 15dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -69dBm | ±1.5dB | |
| MCS 9 | 13dBm | ±1.5dB | -66dBm | ±1.5dB | |
| 5GHz 802.11ac VHT80 | MCS 0 | 18dBm | ±1.5dB | -88dBm | ±1.5dB |
| MCS 1 | 18dBm | ±1.5dB | -86dBm | ±1.5dB | |
| MCS 2 | 18dBm | ±1.5dB | -84dBm | ±1.5dB | |
| MCS 3 | 17dBm | ±1.5dB | -81dBm | ±1.5dB | |
| MCS 4 | 17dBm | ±1.5dB | -77dBm | ±1.5dB | |
| MCS 5 | 16dBm | ±1.5dB | -74dBm | ±1.5dB | |
| MCS 6 | 15dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -70dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -67dBm | ±1.5dB | |
| MCS 9 | 13dBm | ±1.5dB | -62dBm | ±1.5dB |
連接器接口
產品尺寸
品尺寸.png)
產品特征
-
Qualcomm Atheros QCA9888
-
802.11ac Wave 2
-
5GHz 最大18dBm 的輸出功率 (單通道) , 21dBm (合計)
-
兼容IEEE 802.11ac & 向后兼容
802.11a/n -
2×2 MU-MIMO 技術, 高達 1733Mbps的吞吐量
-
MiniPCI Express 1.1 接口
-
支持動態頻率選擇 (DFS)
產品規格
| 產品類型 | 無線模塊 |
| 芯片 | QCA9888 |
| 無線標準 | 802.11n, 802.11ac, 802.11a |
| MIMO 通道 | 2×2 |
| 輸出(單通道) | 18dBm |
| 頻率范圍 | 5.180 ~ 5.825 GHz |
| 無線速度 | 867Mbps |
| 接口 | 1x MiniPCI-e Pin |
| MiniPCI-e Pin | v1.1 |
| 功耗 | 8.4W (最大) |
| 溫度范圍 | 工作: -40oC to 70oC, 儲存: -40oC to 90oC |
| 濕度 | 工作:5% to 95% (非冷凝) |
| 認證 | RoHS 認證 |
| 尺寸(W x H x D) | 50.8 x 30 x 10.4 mm (H x W x D) |
| 5Ghz (單通道) | |||
| Data Rate | TX | RX | |
| 802.11a | 6Mbps | 18 | -92dBm |
| 54Mbps | 15 | -76dBm | |
| 11n HT20 | MCS 0 | 18 | -90dBm |
| MCS 7 | 14 | -70Bm | |
| 11n HT40 | MCS 0 | 18 | -87dBm |
| MCS 7 | 14 | -68dBm | |
| 11ac VHT20 | MCS 0 | 18 | -90dBm |
| MCS 8 | 12 | -66dBm | |
| 11ac VHT40 | MCS 0 | 18 | -87dBm |
| MCS 9 | 12 | -61dBm | |
| 11ac VHT80 | MCS0 | 17 | -84dBm |
| MCS 9 | 11 | -58dBm | |
| 11ac VHT160 | MCS0 | TBA | TBA |
| MCS 9 | TBA | TBA | |
產品特征
-
Qualcomm Atheros QCA9888
-
兼容IEEE 802.11ac &向后兼容802.11a/n
-
2×2 MIMO 技術, 高達867Mbps
-
2 空間流 (2SS) 20/40/80 MHz 帶寬
-
1 空間流 (1SS) 80+80 MHz 帶寬
-
MiniPCI Express 接口
-
支持 空間復用， 循環延遲分集 (CDD), 低密度奇偶校驗碼 (LDPC) , 最大比合并(MRC), 空時分組碼(STBC)
-
支持 IEEE 802.11d, e, h, i, k, r, v 時間戳, 和 w 標準
-
支持動態頻率選擇 (DFS)
產品規格
| 產品類型 | 無線模塊 |
| 芯片 | QCA9888 |
| 無線標準 | 802.11n, 802.11ac, 802.11a |
| MIMO 通道 | 2×2 |
| 輸出(單通道) | 25dBm |
| 頻率范圍 | 5.180 ~ 5.825 GHz |
| 無線速度 | 867Mbps |
| 接口 | 1x MiniPCI-e Pin |
| MiniPCI-e Pin | v2.0 |
| 功耗9.49 | W (最大) |
| 溫度范圍 | 工作: -40oC to 70oC, 儲存: -40oC to 90oC |
| 濕度 | 工作:5% to 95% (非冷凝) |
| 認證 | RoHS 認證 |
| 尺寸(W x H x D) | 50.8 x 29.9 x 12.2 mm (W x H x D) |
| 5Ghz (單通道) | |||
| Data Rate | TX | RX | |
| 802.11a | 6Mbps | 25 | TBA |
| 54Mbps | 21 | -TBA | |
| 11n HT20 | MCS 0 | 25 | TBA |
| MCS 7 | 20 | TBA | |
| 11n HT40 | MCS 0 | 25 | TBA |
| MCS 7 | 20 | TBA | |
| 11ac VHT20 | MCS 0 | 25 | TBA |
| MCS 8 | 18 | TBA | |
| 11ac VHT40 | MCS 0 | 25 | TBA |
| MCS 9 | 18 | TBA | |
| 11ac VHT80 | MCS0 | 25 | TBA |
| MCS 9 | 18 | TBA | |
| 11ac VHT160 | MCS0 | 24 | TBA |
| MCS 9 | 17 | TBA | |
產品特征
-
Qualcomm-Atheros QCA9980
-
Qualcomm Atheros ‘Cascade’ QCA9984
-
CUS239 參考設計
-
5GHz 最大23dBm 輸出功率 (每通道)
-
兼容IEEE 802.11ac & 并向后兼容 802.11a/n
-
高達 1.73Gbps的數據傳輸速度
-
2 個空間流 (2SS) ，支持MIMO 160MHz and 80+80MHz帶寬
-
4 個空間流 (4SS) Multi-user MIMO (MU-MIMO)
-
802.11ac 明確的發射波速形成 (TxBF) 和傳統的隱TxBF 的發射波速形成
-
MiniPCI Express 2.0 接口
-
支持空間復用, 循環延遲分集(CDD), 低密度奇偶校驗 (LDPC) Codes, 最大比合并(MRC), 空時分組碼 (STBC)
-
支持IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w 和z 標準
-
支持動態頻率選擇 (DFS)
-
為高帶寬企業AP 而設計
產品規格
| 產品類型 | 無線模塊 |
| 芯片 | QCA9984 |
| 無線標準 | 802.11n, 802.11ac, 802.11a |
| MIMO 通道 | 4×4 |
| 無線速度 | 1730Mbps |
| 輸出(每通道) | 23dBm |
| 頻率范圍 | 5.180 ~ 5.825 GHz |
| 接口 | 1x MiniPCI-e Pin |
| MiniPCI-e Pin | v2.0 |
| 功耗 | 13瓦 (最大） |
| 溫度范圍 | 工作: -20oC to 70oC, 儲存: -40oC to 90oC |
| 濕度 | 工作:5% to 95% (非冷凝) |
| 認證 | RoHS 認證 |
| 尺寸(W x H x D) | 73.7 x 50.3 x 5.5 mm |
| 5Ghz (單通道) | |||
| Data Rate | TX (每通道) | RX | |
| 802.11a | 6Mbps | 23 | -96 |
| 54Mbps | TBA | TBA | |
| 11n HT20 | MCS0 | 23 | -96 |
| MCS 7 | 21 | -78 | |
| 11n HT40 | MCS0 | 23 | -96 |
| MCS 7 | 20 | -77 | |
| 11ac VHT20 | MCS0 | 23 | -96 |
| MCS 7 | 20 | -76 | |
| 11ac VHT40 | MCS0 | 23 | -93 |
| MCS 9 | 20 | -72 | |
| 11ac VHT80 | MCS0 | 23 | -89 |
| MCS 9 | 20 | -68 | |
| 11ac VHT160 | MCS0 | 23 | -89 |
| MCS 9 | 20 | -68 | |
產品特征
-
Qualcomm Atheros ‘Cascade’ QCA9984
-
5GHz 最大 20dBm的輸出功率 (單通道)
-
兼容IEEE 802.11ac & 向后兼容 802.11a/n, 高達 1733Mbps的速率多用戶 MIMO (MU-MIMO) 波速成形
-
4 空間流 (4SS) 80MHz帶寬
-
2 空間流(2SS) 160MHz帶寬或者 80+80MHz
-
Mini PCI Express 2.0 接口
-
支持空間復用， 循環延遲分集(CDD), 低密度奇偶校驗碼(LDPC) , 最大比合并 (MRC), 空時分組碼(STBC)
-
支持 IEEE 802.11d, e, h, i, j, k, r, u, v 時間戳 w , 和 z 標準
-
支持動態頻率選擇 (DFS)
-
為高帶寬的企業級無線AP而設計
產品規格
| 產品類型 | 無線模塊 |
| 芯片 | QCA9984 |
| 無線標準 | 802.11n, 802.11ac, 802.11a |
| MIMO 通道 | 4×4 |
| 無線速度 | 1730Mbps |
| 輸出(每通道) | 20dBm |
| 頻率范圍 | 5.180 ~ 5.825 GHz |
| 接口 | 1x MiniPCI-e Pin |
| MiniPCI-e Pin | v2.0 |
| 功耗 | 13瓦 (最大） |
| 溫度范圍 | 工作: -20oC to 70oC, 儲存: -40oC to 90oC |
| 濕度 | 工作:5% to 95% (非冷凝) |
| 認證 | RoHS 認證 |
| 尺寸(W x H x D) | 73.7 x 50.3 x 5.5 mm |
| 5Ghz (單通道) | |||
| Data Rate | TX (每通道) | RX | |
| 802.11a | 6Mbps | 23 | -96 |
| 54Mbps | TBA | TBA | |
| 11n HT20 | MCS0 | 23 | -96 |
| MCS 7 | 21 | -78 | |
| 11n HT40 | MCS0 | 23 | -96 |
| MCS 7 | 20 | -77 | |
| 11ac VHT20 | MCS0 | 23 | -96 |
| MCS 7 | 20 | -76 | |
| 11ac VHT40 | MCS0 | 23 | -93 |
| MCS 9 | 20 | -72 | |
| 11ac VHT80 | MCS0 | 23 | -89 |
| MCS 9 | 20 | -68 | |
| 11ac VHT160 | MCS0 | 23 | -89 |
| MCS 9 | 20 | -68 | |
